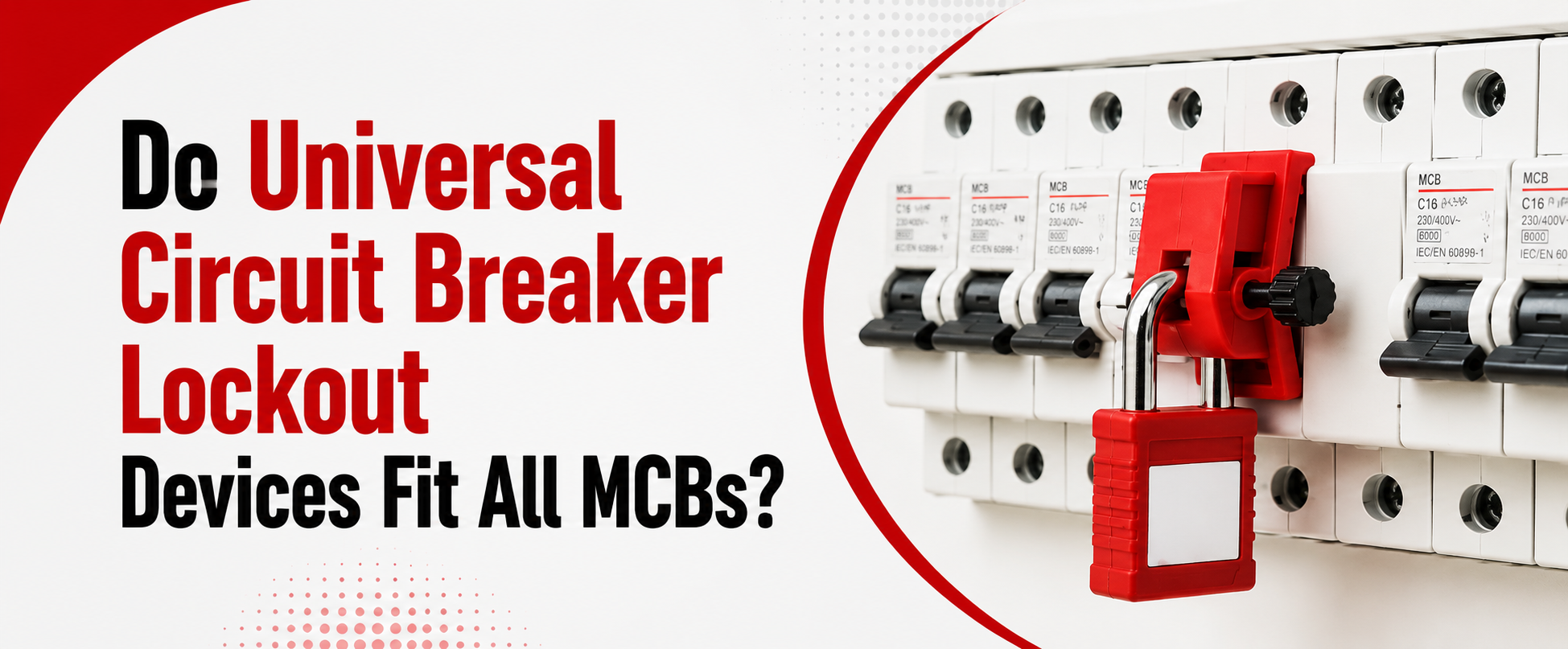

Do Universal Circuit Breaker Lockout Devices Fit All MCBs?
Electrical maintenance often requires more than simply switching an MCB to the OFF position. During repair, inspection, or servicing, the breaker must remain safely isolated so that nobody accidentally turns the power back on. This is where a circuit breaker lockout device becomes an important part of a Lockout/Tagout (LOTO) procedure.
Universal circuit breaker lockout devices are designed to work with a wide range of miniature circuit breakers (MCBs), including many single-pole and multi-pole designs. However, the word “universal” does not necessarily mean that one device will fit every MCB available worldwide. Breaker handle dimensions, construction, spacing, mounting style, and design can vary between manufacturers and models.
For businesses looking for dependable electrical safety equipment, understanding compatibility is essential. Lukko Safety offers practical lockout solutions designed to support safer electrical maintenance across different workplace environments worldwide.
What Is a Universal Circuit Breaker Lockout Device?
A universal circuit breaker lockout device is a safety tool used to prevent an MCB from being accidentally switched back on after it has been placed in the OFF position.
Unlike some MCB lockouts that depend on specific holes or pins in the breaker, universal models can often grip the operating handle directly. Some designs use a screw, thumbwheel, or adjustable mechanism to secure the device in position.
Once properly fitted, a safety padlock can be attached to prevent unauthorized operation. This provides a visible and physical barrier during electrical work.
Do Universal Circuit Breaker Lockouts Fit All MCBs?
No, not necessarily. Universal circuit breaker lockouts are intended to fit most compatible MCBs, but they cannot automatically be assumed to fit every breaker model.
Different MCBs can have variations in:
- Toggle shape and size
- Handle thickness
- Pole configuration
- Handle spacing
- Cross-bar construction
- Available clearance around the switch
- Breaker design and manufacturer specifications
For example, some universal lockouts are specifically designed for small circuit breakers and can accommodate both single- and multi-pole breakers. Other adjustable models are designed to work with larger multi-pole breakers connected by a cross bar.
Therefore, compatibility should always be checked before selecting a universal device for a particular MCB.
Why Does MCB Compatibility Matter?
A lockout device is only useful when it holds the breaker securely. If the device is too loose, incorrectly positioned, or unable to engage with the MCB handle, it may not provide the intended protection.
A properly fitted MCB lockout should:
- Hold the breaker securely in its OFF position.
- Prevent accidental operation of the switch.
- Remain stable during maintenance work.
- Allow the appropriate padlock to be attached.
- Be suitable for the specific breaker configuration.
Some universal devices are designed to lock MCBs without requiring dedicated holes in the breaker. This can make them useful across a broader range of electrical panels.
How to Check Whether a Universal MCB Lockout Fits
Before purchasing a universal circuit breaker lockout, compare the device specifications with the MCB you intend to isolate.
1. Check the MCB Type
Identify whether the breaker is single-pole, double-pole, triple-pole, or another configuration. Many universal devices support multiple pole arrangements, but this should be confirmed for the particular product.
2. Measure the Operating Handle
The size and shape of the MCB toggle can affect compatibility. Check the manufacturer's recommended dimensions and compare them with your breaker.
3. Look at the Available Clearance
The lockout needs enough space around the handle to be positioned correctly. Crowded electrical panels may require a more compact or specially designed lockout.
4. Check the Lockout Mechanism
Different devices use different fixing methods. Screw-operated models, for example, tighten against the breaker handle, while other designs may use pins or adjustable thumbwheels.
5. Test the Fit Before Routine Use
After installation, verify that the device is firmly secured and that the MCB cannot be operated while locked out. Never assume compatibility simply because a product is described as “universal.”
Universal vs. Dedicated MCB Lockout Devices
Feature | Universal MCB Lockout | Dedicated MCB Lockout |
Compatibility | Designed for a broad range of breakers | Designed for specific breaker types |
Flexibility | Generally higher | More limited |
Installation | Depends on model | Often straightforward |
Best for | Mixed electrical panels | Standardized breaker systems |
Selection | Requires compatibility checking | Usually based on breaker model |
Universal devices can be particularly useful for facilities where electrical panels contain breakers from different manufacturers or where maintenance teams work across multiple locations.
However, a dedicated lockout may be preferable when a particular MCB design requires a specific locking mechanism.
Are Universal Lockouts Suitable for Single and Multi-Pole MCBs?
Many universal circuit breaker lockout devices are designed to work with both single- and multi-pole breakers. However, this is a product-specific feature rather than a guarantee for every universal lockout.
Some models are explicitly manufactured for single, double, and triple-pole circuit breakers, while others are intended for particular dimensions or handle configurations.
For multi-pole breakers, it is especially important to check whether the lockout can accommodate the breaker arrangement and any connecting cross bar.
What Makes a Good Universal Circuit Breaker Lockout?
When choosing an MCB lockout for workplace use, consider more than just whether it fits.
Look for:
- Secure gripping: The device should remain firmly attached.
- Durable construction: Materials should withstand regular industrial use.
- Non-conductive components: Appropriate insulating materials can provide an additional safety advantage.
- Simple installation: Easy fitting helps maintenance personnel use the device correctly.
- Padlock compatibility: The lockout should accommodate the required safety padlock.
- Suitable size range: The device should match the MCB dimensions and configuration.
- Clear product specifications: Compatibility information should be available before purchase.
Universal devices are available in different designs and sizes, so selecting the right model remains important even when the product is marketed as universal.
Common Mistakes to Avoid When Choosing an MCB Lockout
A few simple mistakes can reduce the effectiveness of an electrical lockout system.
Assuming “Universal” Means Every MCB
Universal generally means the device is designed to accommodate a broad range of compatible breakers, not every breaker ever manufactured.
Ignoring Dimensions
A small difference in handle size or shape can affect how securely the lockout fits.
Choosing Only by Price
The cheapest device may not be the best option if it does not provide the required compatibility, durability, or locking mechanism.
Skipping the Fit Test
Always verify the lockout on the actual breaker before relying on it during maintenance.
Choose the Right Circuit Breaker Lockout with Lukko Safety
The right circuit breaker lockout can make electrical isolation procedures more consistent and secure. While universal MCB lockouts offer broad compatibility, the correct selection still depends on the breaker design, dimensions, pole arrangement, and locking mechanism.
Lukko Safety provides electrical lockout solutions for workplaces that need practical and dependable LOTO equipment. Whether your facility operates a small electrical panel or manages multiple industrial sites, choosing a compatible lockout is an important step toward safer maintenance practices. Contact Lukko Safety to discuss your MCB lockout requirements and find a suitable solution for your application worldwide.
Frequently Asked Questions
No. Universal lockouts are designed to fit a broad range of MCBs, but breaker dimensions, handle designs, pole arrangements, and clearances can differ. Always check the manufacturer’s compatibility specifications before selecting a device.
Many universal MCB lockouts support single-pole breakers. However, compatibility depends on the specific product design. Check the product specifications and confirm that the dimensions match your breaker.
Yes, many models are designed for multi-pole breakers as well. Some products specifically support single, double, and triple-pole configurations.
Not always. Several universal designs grip or clamp directly onto the breaker handle and do not require dedicated holes in the MCB.
Check the MCB’s handle dimensions, configuration, available clearance, and locking arrangement against the lockout manufacturer’s specifications. A physical fit test is also recommended before regular use.
