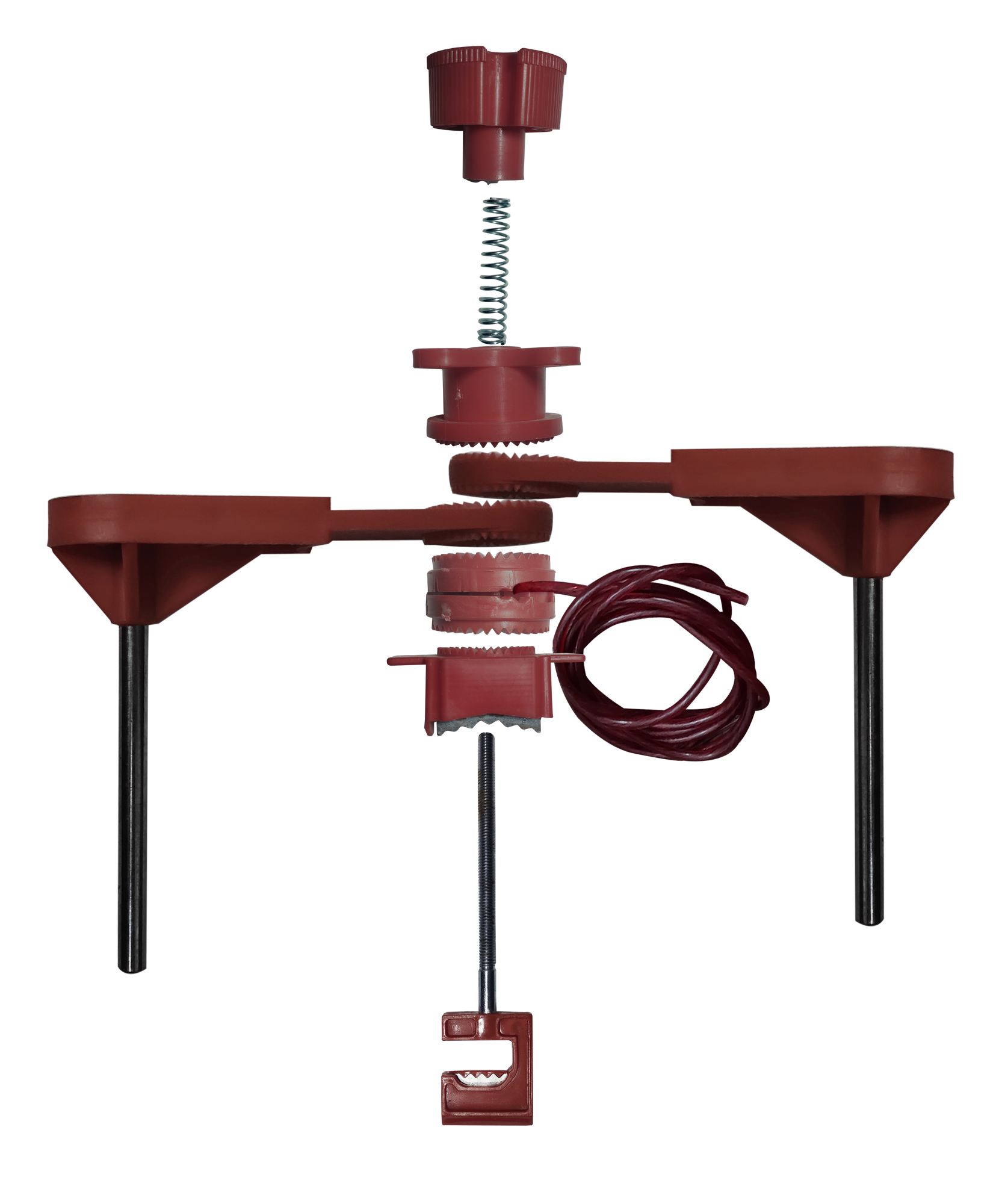

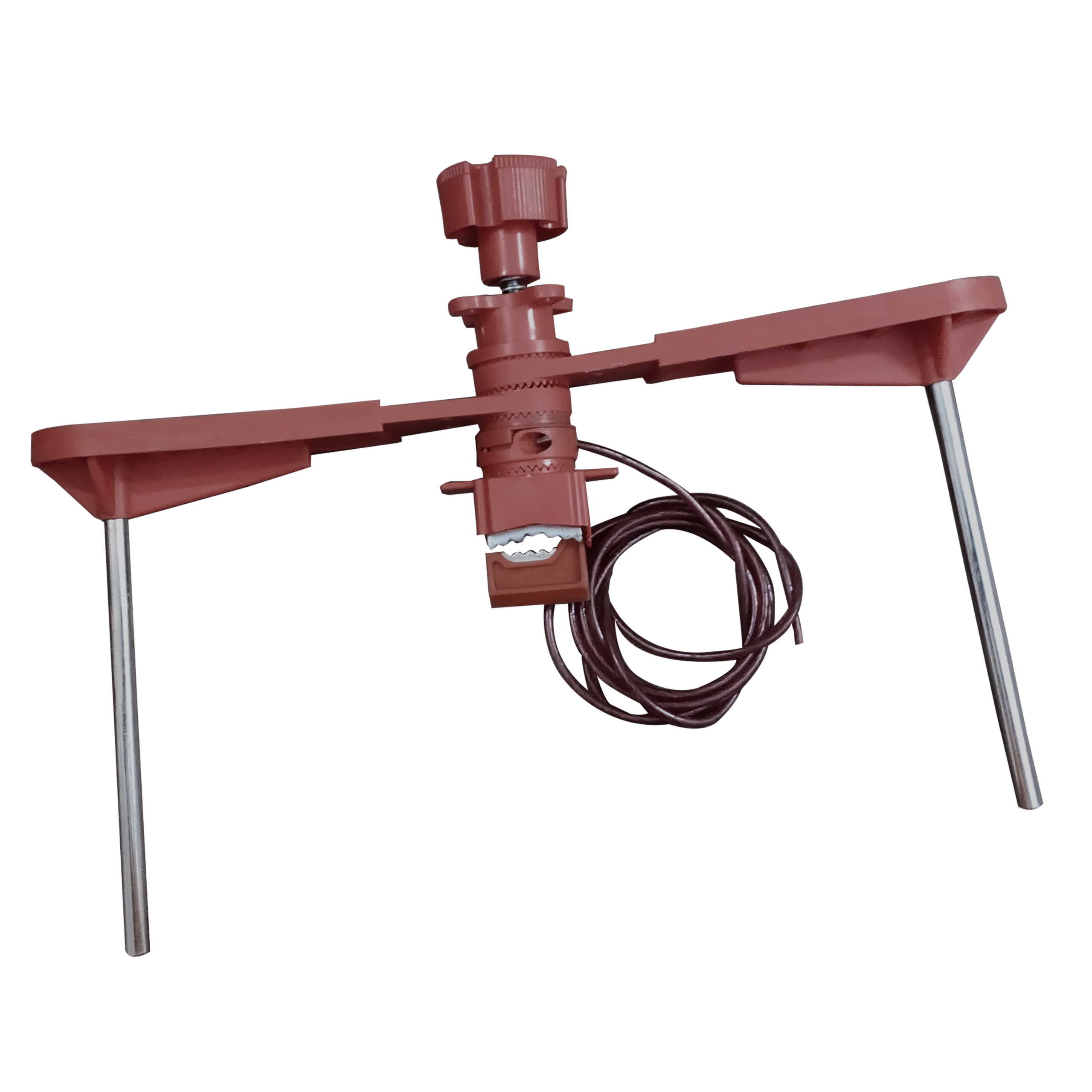

LS – UV85
Body length 147mm,
Front Jaw/grip 14.5mm X 28mm
Cable length 2mtr.
BOLT thickness 7 / 8 mm,
Both Arm {metal rod (L)203mm,
LS – UV85
Body length 147mm,
Front Jaw/grip 14.5mm X 28mm
Cable length 2mtr.
BOLT thickness 7 / 8 mm,
Both Arm {metal rod (L)203mm,
• Material : ABS/PP, Mild stainless steel part, SS sheet and Spring, PU
• Locking holes : 4 numbers.
• Front Jaw/grip 14.5mm X 28mm, BOLT thickness 7 / 8 mm
• Accepts shackle maximum up to : 9mm
• Can used to lockout gate valve, ball valve and butterfly valve of numerous sizes.
• Application: Lockout large levers, T-handles and other hard to secure mechanical devices, with the help of cable attachment we
can lockout the gate valves, and attaching the clamp with butterfly valve handle we can prevent unexpected activation, and can
be used to lockout perpendicular / OFF ball valves along with the single / dual arms.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
