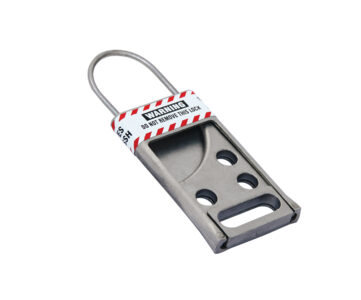

LS – H46
Used to lockout electrical as well as mechanical devices while
perform servicing, maintenance or cleaning activities.
LS – H46
Used to lockout electrical as well as mechanical devices while
perform servicing, maintenance or cleaning activities.
Detail
Material: CI + chrome coating
• Accepts shackle up to: 8.5mm
• Locking holes: 3 holes + 1 big slot
• Jaw size: 30mm / 28.7mm
• Locking Slot size: 30.5mm X 9.2mm
• Complete length: 113.7mm
• Shackle thickness: 5mm
• Body Width at: Top (43mm) Bottom (46mm)
• Weight: 112gm
• Warning / Danger / Caution label for the recognition purpose
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
