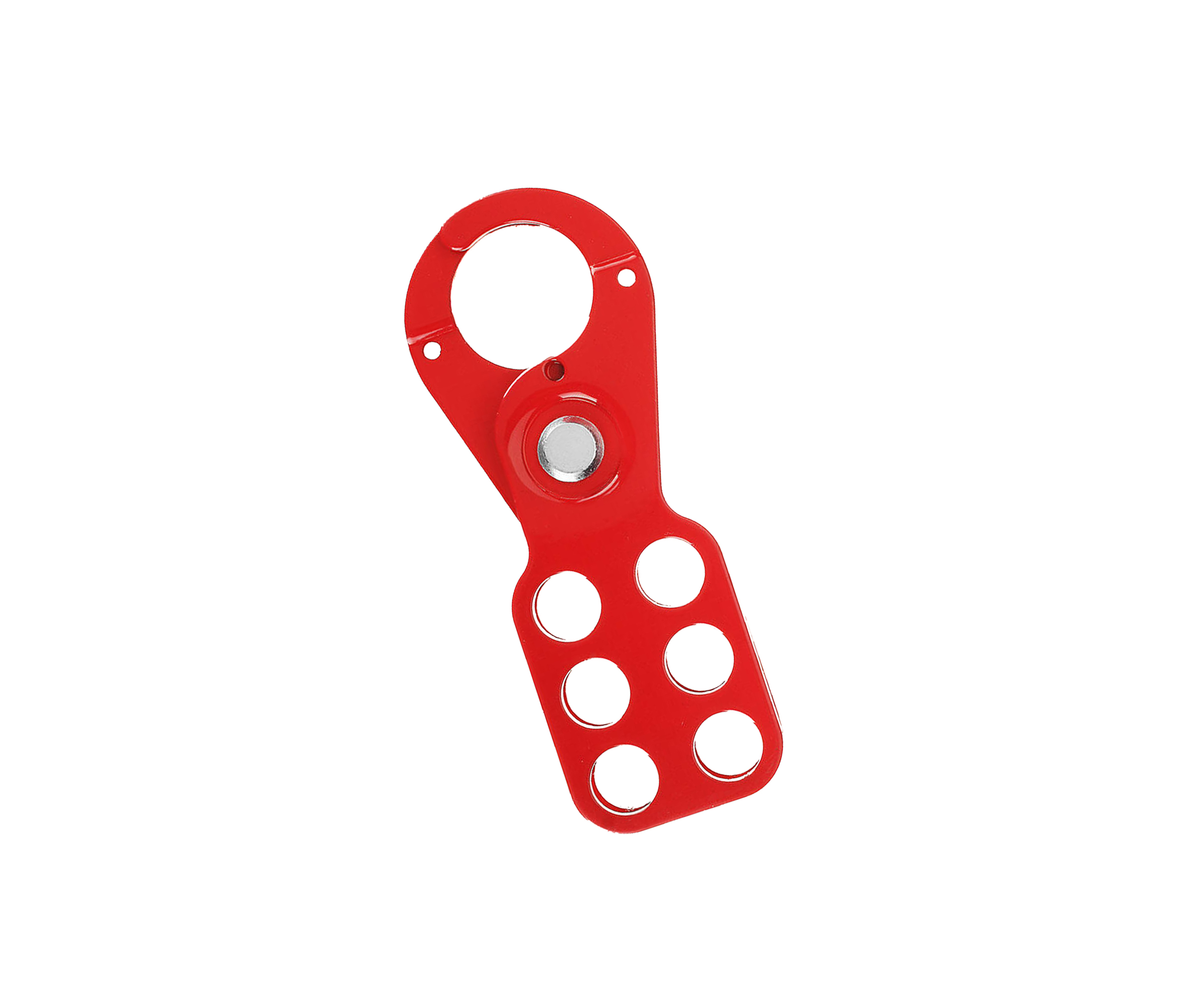

LS – H39
Used to lockout electrical as well as mechanical devices while
perform servicing, maintenance or cleaning activities, hooks are provided at
one / both sides to improve grip and protection.
LS – H39
Used to lockout electrical as well as mechanical devices while
perform servicing, maintenance or cleaning activities, hooks are provided at
one / both sides to improve grip and protection.
Detail
Material: MS + chrome coating + vinyl coated handle
• Complete length: 114mm (62mm metallic + 52mm vinyl
coated part) / 129mm
• Width: 40.5mm
• Thickness: 2mm metallic part and 4.1mm coated part.
• Jaw Size: Available in two different jaw dia 25mm Or 38/39mm
• Accepts shackle maximum up to: 9mm
• Locking holes: 6 numbers to provide group isolation
• Two extra small holes provided at the edges to hang the tags with the help of
a cable tie.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
