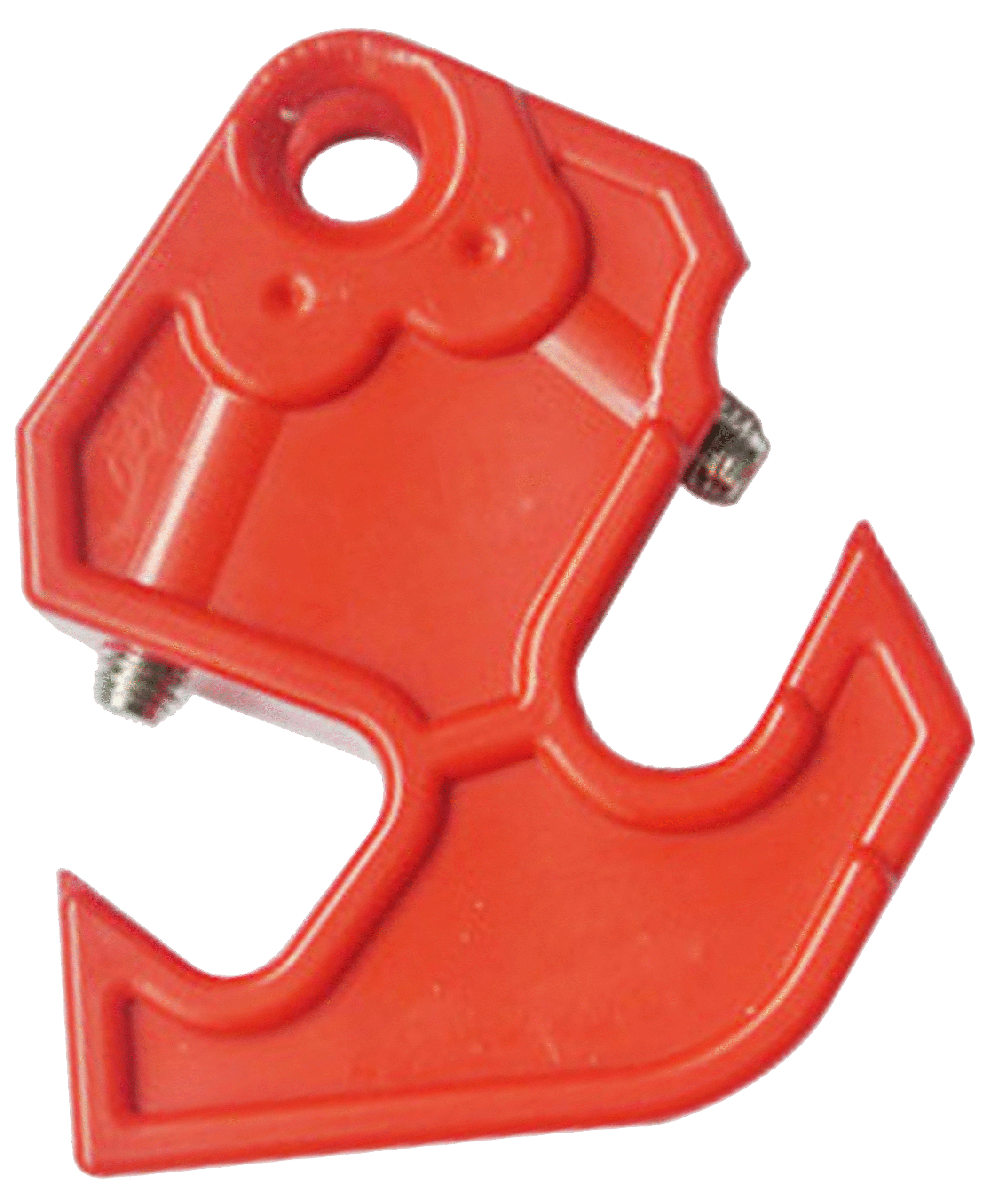

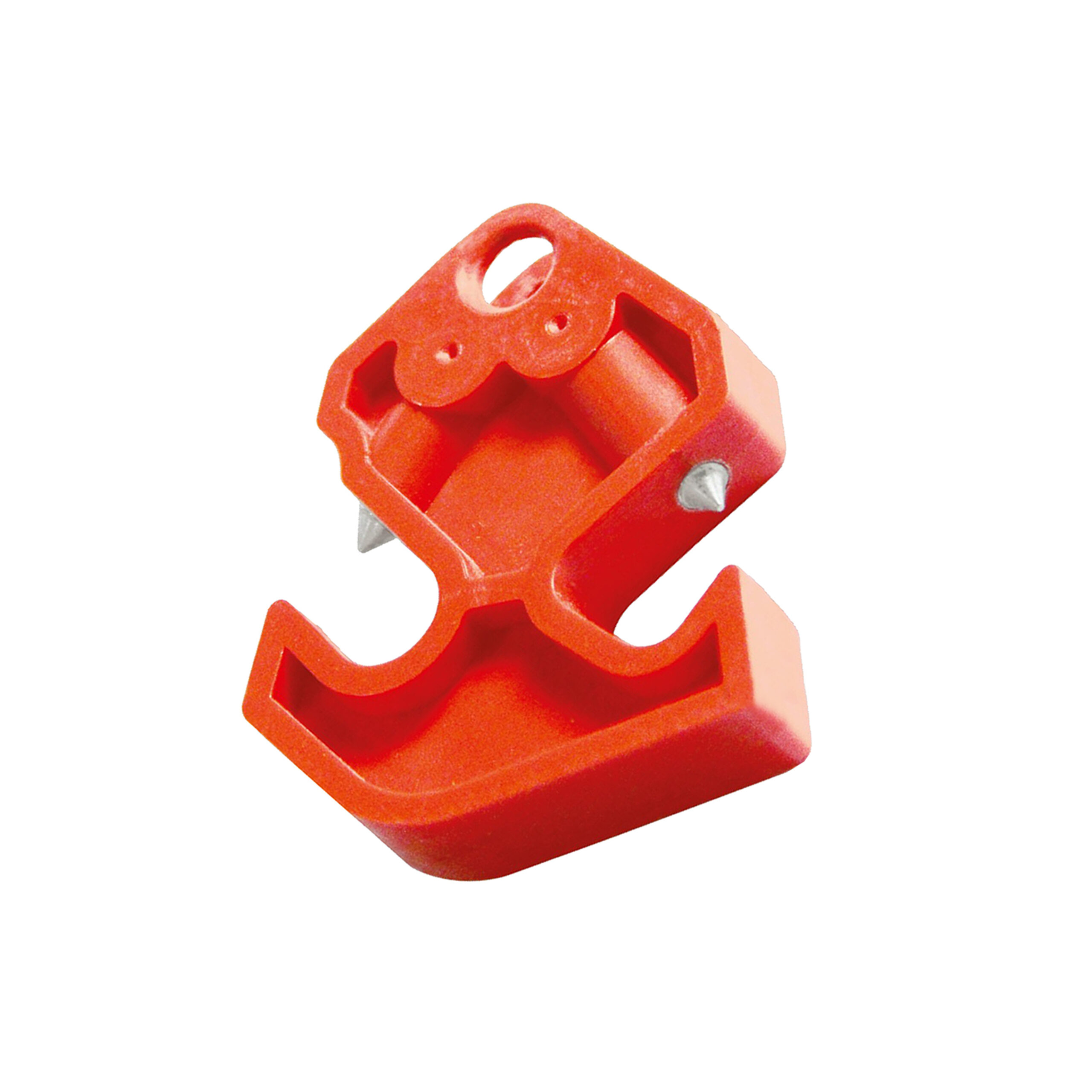

LS- BR26
Dual Sided Circuit Breaker Lockout
Height: 57mm Width : 12mm
MCB operator locking curve : at one side 8.5mm / another wide side 12.32mm.
LS- BR26
Dual Sided Circuit Breaker Lockout
Height: 57mm Width : 12mm
MCB operator locking curve : at one side 8.5mm / another wide side 12.32mm.
Detail
Material : ABS + Metal screw
• Accepts shackle up to : 8mm / Locking holes : 01
• One side small normal screw: length 11.4mm, thickness 4.9mm
• Other side large normal screw: length 19.4mm, thickness 3.8mm
• Size : 57 mm (Height) and 12 mm (Width)
• MCB operator locking curve : at one side 8.5mm / another wide side
12.32mm
• Device is ideal to use on multiple MCB’s and main switches.
• Two opposite sides are having two different clearances that
can lockout several sizes of circuit breaker operating handle.
Product Application
- When & Where should use LOTO?
- Daily maintenance, adjustment, cleaning, inspection and commissioning for equipment. Enter into the limited space, hot work, dismantling work and so on in the tower, tank, electrified body, kettle, heat exchanger, pumps and other facilities.
- Operation involving high voltage. ( including the operation under the high-tension cable )
- Operation require closing the safety system temporary.
- Operation during maintenance and commissioning of non-processing.
